AgnosPCB ONLINE Inspection Plaftorm

 2.010,00

Created to simplify and speed up the process of checking the integrity of electronic panels and/or circuits. With a single click, the platform will adjust the camera settings to optimal values and search for possible errors in a matter of seconds. The platform comes with an ESD mat to prevent unwanted electrostatic discharges.

Inspection area of 27×34 cms (1.,6×13,3 inches)

It has been pre-assembled to make the installation process much simpler.

This KIT comes with 200 inspection credits with no expiry date. Check the integrity of your panels/circuits 400 times at no extra cost



This inspection platform includes:

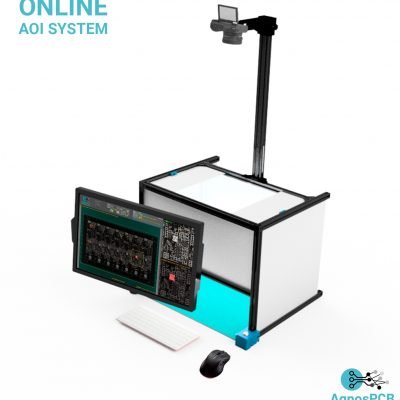

  • SONY ALPHA camera (24.3 megapixel APS-C CMOS sensor, Bionz X image processor. Preconfigured).
  • 50mm F1.8 Ynlens Optics.
  • ESD MAT : designed to drain static charge from items placed on its surface + ground lead + ESD Wrist Strap.
  • 2x 108 LED 30W pure Light Side Panels + remote control.
  • Black anodized aluminum structure (PRE-MOUNTED).
  • White LIGHT diffuser panels (3).
  • SONY NP-FW50 dummy USB battery (8,4 V).
  • 2m USB 2.0 micro-USB cable.
  • Pre-programmed Intel NUC Mini-computer (with Keyboard and mouse) + INSPECTION BUTTON (with LED indicator).
  • OPTIONAL: 22″ IPS FULL-HD Light-weight MONITOR.
  • 200 free inspection credits. With no expiry date.

    Add a monitor to the inspection platform.

    SPECIFICATIONS

      • Asus 22" Class (21.5" diagonal)
      • Response Time: 5 ms
      • Color Depth: 16.7M colors
      • Aspect Ratio 16:9
      • Brightness (typical) 250 (typ), 200 (min)
      • Viewing Angle 178 / 178
      • Pixel Pitch (mm) 0.24795mm x 0.24795mm
      • Weight: 2.5 Kg (5.5 lbs)

Description

Description

Intel NUC processing unit

The Intel NUC Mini-computer will do everything for you: in charge of controlling the camera, it will take the best possible photos and process the images automatically.  It comes with an external ruggedized button, so you just need to press it every time you want to check the integrity of your panel/circuit. A simple, seamless and fast process.

The latest version of the AgnosPCB inspection tool software has already been installed on the computer.

Useful links:

Interactive 3D model

Frequently asked question:

1. Do I really need the micro-computer?

No. You can use your own laptop or desktop computer to run our inspection software, but you will need to manually take the photo of all the panel/circuits you are planning to inspect, as the camera can not be remotely controlled.

That is not a big deal, but we recommend getting the mini-computer instead. Reasons:

    • It is Linux based and its robustness and stability is greater than any other OS based computer. Most industrial equipments are Linux based for a reason.
    • The OS environment is controlled: there will not be third party software apps creating conflicts with the AgnosPCB inspection software.
    • In the case of problems, our support team can easily replicate it in our offices

2. Is there any warranty?

Of course. The inspection platform and lighting system is covered by 1-year warranty. Camera, optics and computer with 2 years.

3. Should I use a wired internet connection?

This is not mandatory, but highly recommended. The software needs to be “online” while it inspects the panels/circuits. The faster the internet connection, the faster the inspection results. Wired internet connection is the fastest and more reliable option available.

4. Where are you shipping from?

We will ship the inspection platform and/or complementary items from Spain.

Additional information

Additional information

Weight13 kg
Dimensions65 × 45 × 45 cm
