FAST YET POWERFUL WAY TO INSPECT YOUR ASSEMBLED PCBs
AgnosPCB is an inexpensive but dependable automated optical inspection (AOI) service. There is no need to invest in expensive AOI equipment, just use your own camera (or our inspection platform) and our freely available software to check the integrity of your assembled PCBs/panels.
Our Neural Network assisted software will look for components faults and highlight them within seconds.
Any panel, circuit, any type of component. If there is a defect, the software will show you where it is. AgnosPCB is adaptable to your inspection necessities. Contact us if you have any questions or specific requirements.
PCB COMPONENT VISUAL INSPECTION
It does not matter the PCB material, color or type of components mounted on the circuit. The Neural Network will detect faults like misaligned, misplaced, missing components or short-circuits.
Capable of learning from the feedback received. A powerful tool that will save you time checking the integrity of your PCBAs.
COMPONENT PLACEMENT INSPECTION AT ANY STAGE
AgnosPCB does not just contrast the integrity of your already assembled PCB. It can find any SMT placement fault on the solder paste layer after the pick-and-place process.
The same AOI system can be used in both stages.
This AOI system knows in which manufacturing process stage the PCBA is, adapt itself accordingly, and look for possible faults.
You do not need to do anything, everything is done automatically.
CAN I EMBED AGNOSPCB AOI SERVICE INTO MY EXISTING MANUFACTURING LINE?
Yes, you can. There is an AgnosPCB API you can use to upload your own PCBA images to our cloud server or your AgnosPCB local processing unit and get the results of the inspection within seconds. Contact us for more information.
cOST EFFECTIVE QUALITY SOLUTION
Inspect up to 900 panels/PCBs per hour with just a camera for an extremely low price. No equipment investment required*. The only limitation is the time needed to take a photo of the circuit/panel to be inspected.
Want to see it by yourself? Contact us and get a trial account.
What can this visual inspection do?
The neural network will use a “good condition PCBA” (GOLDEN SAMPLE) to compare any other circuits/panels. Then, just take photos of the PCBAs you want to inspect. The AgnosPCB software will highlight every fault found on them (if any). The process takes seconds. After looking for faults, this tool will mark on the photo of the circuit/ panel anything that will require to be doubled checked by a technician.
Type of faults detected:
- Missing components

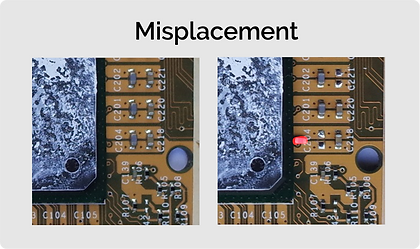

- Misplaced or Rotated
- Bent pins
AgnosPCB AOI system Advantages:
- No need to pre-program the AOI system
- Can be used to check the PCBA after the Pick and Place and reflow oven processes
- Check the integrity of any panel/circuit even without the original Gerber/design files
- Fast and reliable
- Extremely cost-effective
Can i use any camera?
Yes, you can, but the AgnosPCB neural network AOI software will need the best possible photo of the PCB in order to provide optimal results.
If you want to test the service, feel free to use a smartphone camera, but keep in mind that you will not get the most of the Agnospcb AOI software.
We have created an inspection platform in order to make the circuit/panels “integrity check” process fast and seamless: the AgnosPCB inspection platform.
By taking detailed photos of the inspection area and using our software tool, the platform is capable of processing each integrity check within seconds.
Just place the circuit/panel and take the photo. The Agnospcb’s Desktop inspection software will show you where the defect are (if any) with just one click.
AGNOSPCB OFFLINE SYSTEM: NO INTERNET REQUIRED
The OFFLINE AgnosPCB AOI system can carry out an inspection within 5 seconds. Processing all the data locally. Not a single bit is sent to our cloud servers.
Just press a button and check the integrity of your PCBA/ Panel with the fastest AOI system in the market.
Perfect if you do not have a good or reliable internet connection or just require a local processing unit.
The powerful processing unit can be upgraded in ten seconds via USB drive. So, this OFFLINE system can be updated as periodically as the ONLINE system does.
The inspection platform will take the best possible photo of the PCB/ Panel placed in the inspection area, setting the camera parameters automatically.
Is AgnosPCB fast? reliable?
It is as precise and reliable as an expensive conventional AOI system. But, why not check it out by yourself?
