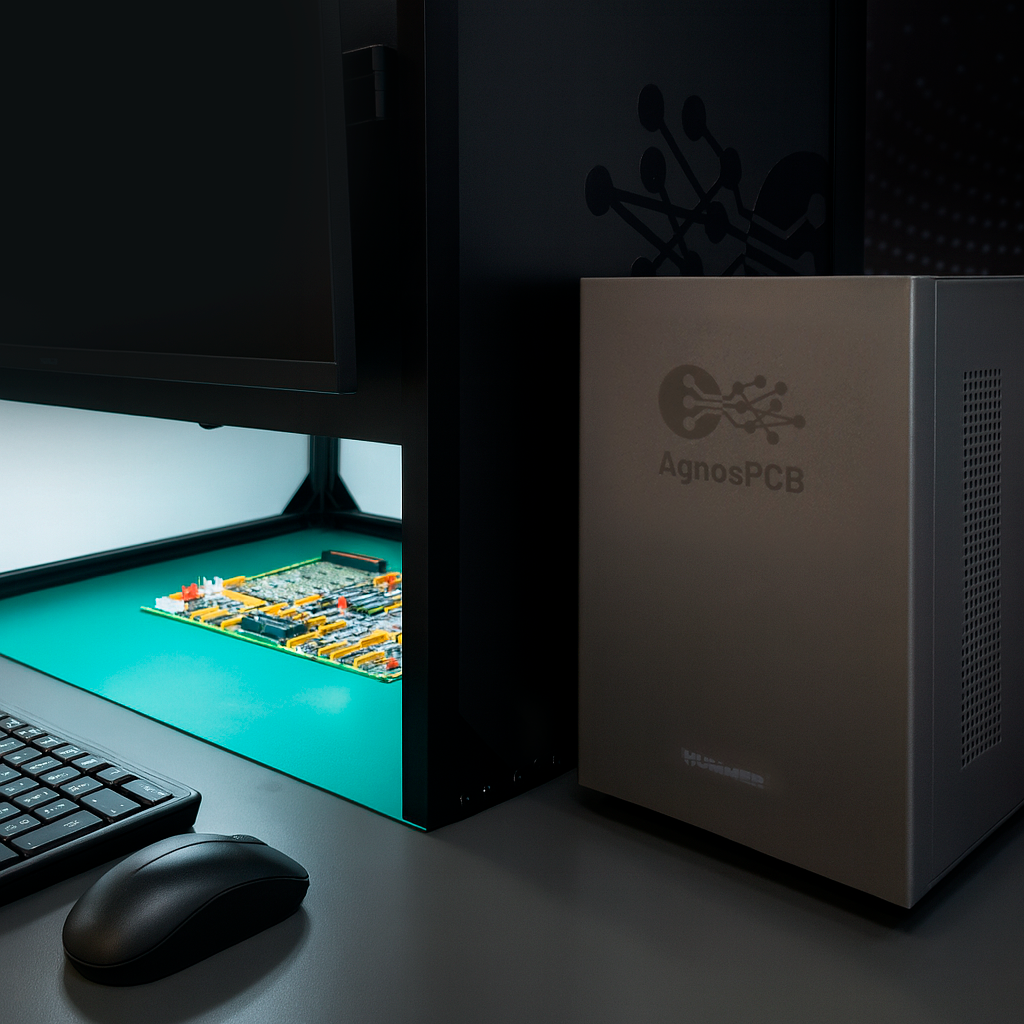

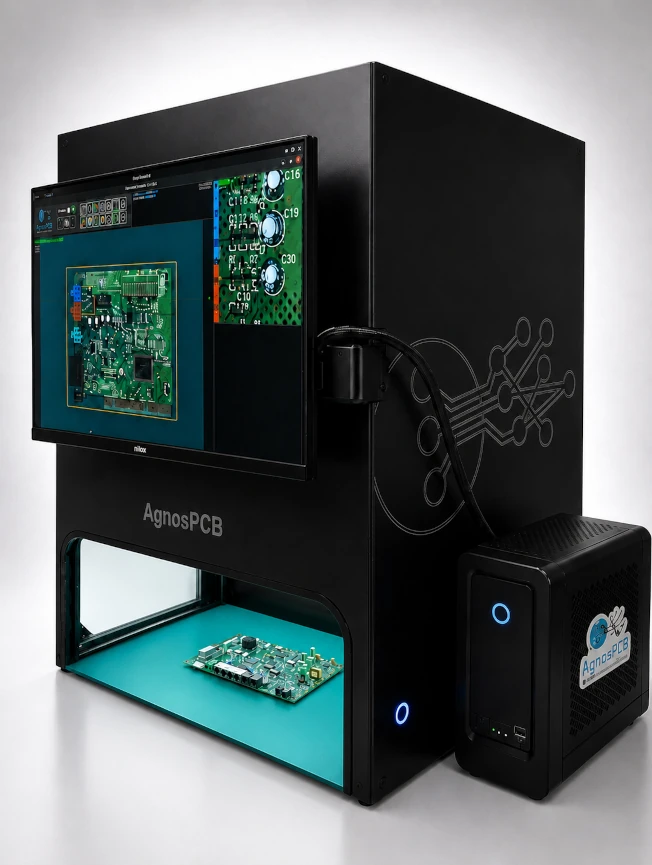

Our AOI System Offline is local, compact, and affordable AOI. No cloud, maximum privacy and adaptable beyond PCBs.
Request more information about our AOI system offline
Created to simplify and speed up the process of checking the integrity of electronic panels and/or circuits. All you have to do is press a button. No need to pre-programming the system. With a single click, the platform will search for possible errors in a matter of seconds.
What our AOI can detect:
- Displacements
- Non-presence
- Excessive rotation
- Short circuits
- Collisions between components
- Polarity errors in components
- Contamination
- Deformations in geometry
- Bent pins
- Damaged components

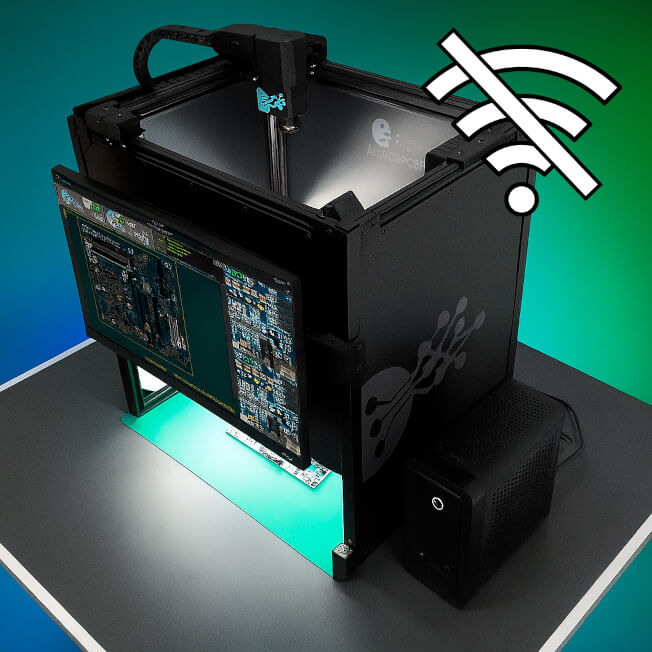

AI 4050 OFFLINE SYSTEM
- All the data is locally processed by the unit. No internet required
- Inspection time: from 5 to 22 seconds depending on the size of the PCBA to be inspected.
- Can be updated/upgraded periodically using a USB drive
- Unlimited use, not subject to subscription.
Offline
Very flexible and fast machine. I like that the AI is constantly evolving and has come a long way since we started using it. Already saved us a lot of money finding missing components, less unhappy clients. Support team is friendly and always ready to help.
the customer suport is excellent！Thank you Sergey for your quick response and everything you did for me!
This is one of the best Theme I’ve purchased thus far. And the customer support by the Author is first-class. Very professional and attentive to my needs. Thanks for sharing your work.
A perfect theme in every respect. They are very good especially in terms of support. I definitely recommend it. I bought dozens of themes. If I put them all on top of each other, it can’t catch the success of this theme.
Works great. Increases our quality without a big upfront investment.
The system runs well. The service is great. We respond quickly to questions and problems. Wishes are taken into account in the further development of the system. We are completely satisfied.
Best tool find errors in pcb production, saving a lot of trouble and very fast. Unbeatable prices. Totally recommended
What are the specs?
Size: 62 x 71 x 54 cm (24.41 x 27.95 x 21.26 in)
Weight: 19 kg ( 41.89 lbs)
Package size: 66 x 73 x 55 cm (25.98 x 28.74 x 21.65 in)
Power consumption: 60W, peak of 110W. 110-200V AC
Optics
- Sensor type: CMOS, rolling shutter
- Sensor model: Sony IMX183
- Pixel size: 2.4 μm × 2.4 μm
- Sensor size: 1″
- Resolution: 5472 × 364
- Lens: 35mm
Inspections
- Max inspection area: 50 x 40 cm (19.69 x 15.75 in)
- Max components per inspection: unlimited
- Inspection time: from 7 to up to 18 seconds, depending on the PCBA size and internet speed.
What does the AOI Offline system include?
- 20 Megapix camera with autofocus (Sony IMX183 sensor)
- 35mm fixed lens optics.
- ESD MAT : designed to drain static charge from items placed on its surface + ground lead + ESD Wrist Strap.
- 360 LED 30W pure Light system
- Black anodized aluminum structure
- USB C and 2.0 micro-USB cable.
- Pre-programmed Ryzen processor Micro-computer (with Keyboard and mouse) + EASY BUTTON (with LED indicator).
- OPTIONAL: 23″ IPS FULL-HD Light-weight HP MONITOR.
The system will be sent completely assembled and ready to work. You just need to set the local time.
If the AOI System is offline, how are updates managed?
The system can be continuosly updated with the lastest neural network architecture. The updates are sent via email.
Is it complicated to set it up for the first time?
The unit has been pre-assembled to make the installation process much simpler. It is just plug&play.
If you need extra information about our products and services, get a trial account or want to rent an AgnosPCB AOI unit, please fill the following form.
Our support team will contact you as soon as possible.
