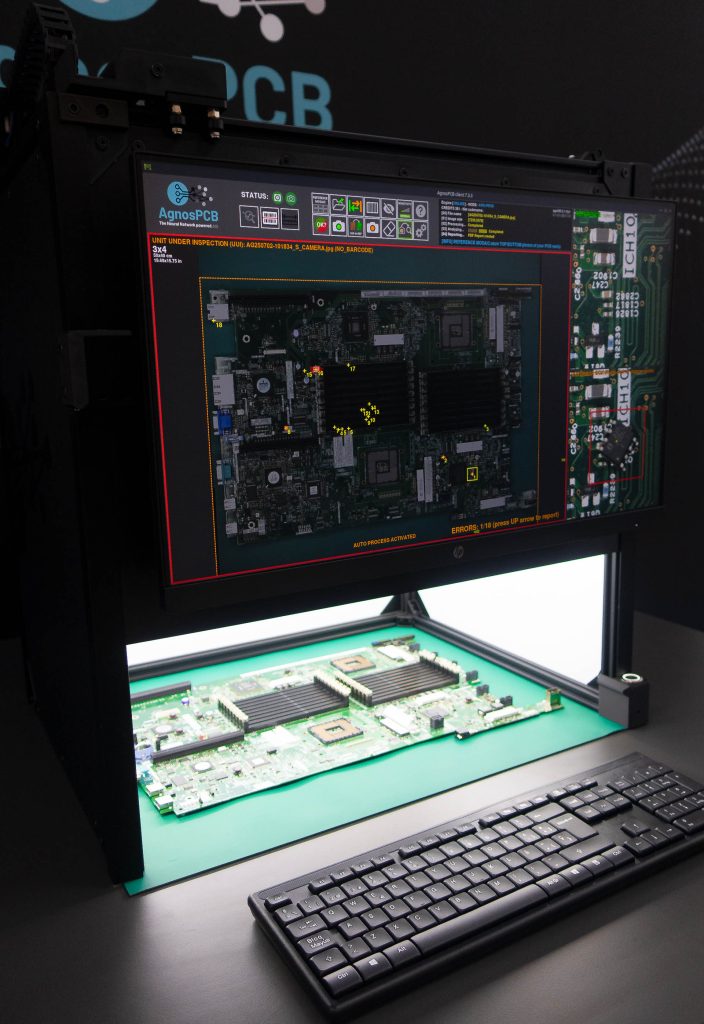

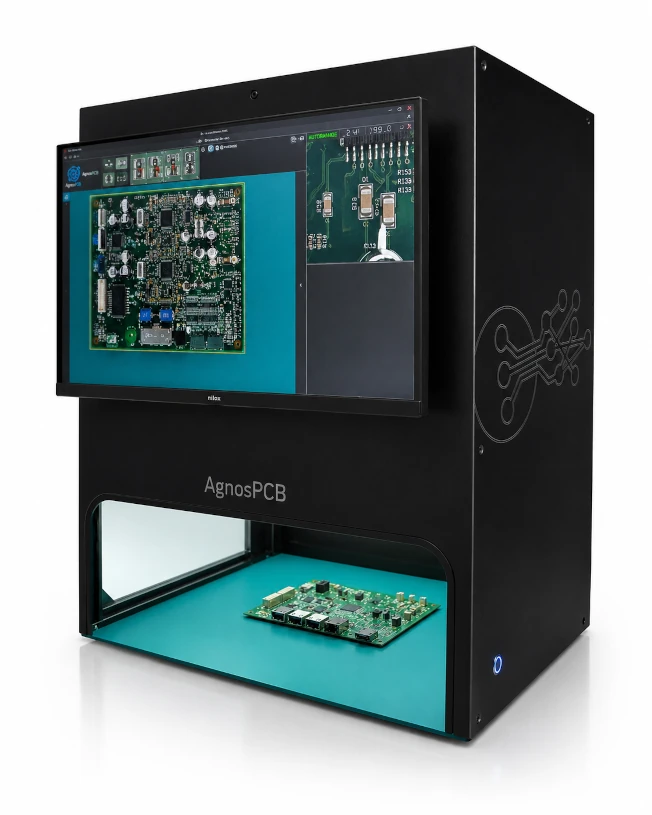

AOI System Online, continuously updated via our neural network.
Compact, mobile, affordable and adaptable beyond PCBs.
This AOI Online system requires internet to work and a monthly subscription to AgnosPCB services and the system is continuosly updated as long as you are subscribed to the AgnosPCB service. No long term contract needed. You can cancel/resume the subscription anytime.
What our AOI can detect:
- Displacements
- Non-presence
- Excessive rotation
- Short circuits
- Collisions between components
- Polarity errors in components
- Contamination
- Deformations in geometry
- Bent pins
- Damaged components

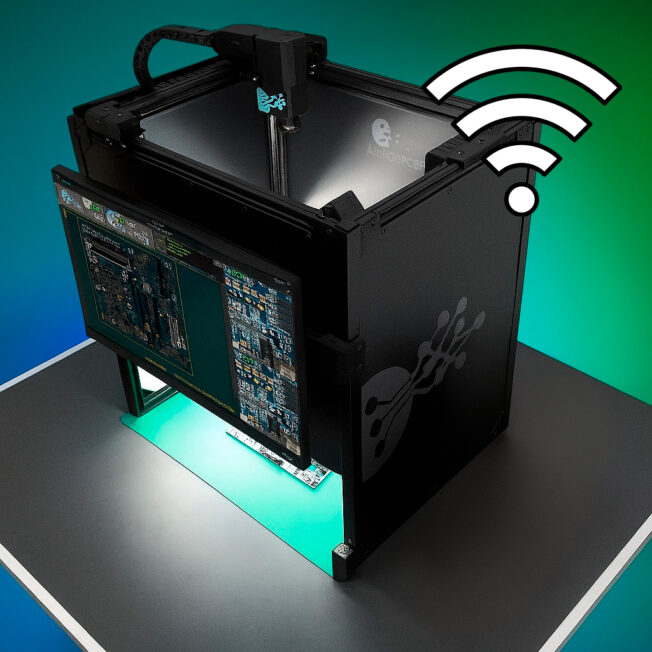

AI 4050 ONLINE SYSTEM
- Requires internet to work + subscription
- The subscription can be frozen / cancelled / resumed any time
- Inspection time (with a fast internet connection): from 6 to 25 seconds depending on the size of the PCBA to be inspected
- Gets the neural network architecture upgrades continuosly.
- Get two free months of GOLD subscription with the unit.
Very flexible and fast machine. I like that the AI is constantly evolving and has come a long way since we started using it. Already saved us a lot of money finding missing components, less unhappy clients. Support team is friendly and always ready to help.
the customer suport is excellent！Thank you Sergey for your quick response and everything you did for me!
This is one of the best Theme I’ve purchased thus far. And the customer support by the Author is first-class. Very professional and attentive to my needs. Thanks for sharing your work.
A perfect theme in every respect. They are very good especially in terms of support. I definitely recommend it. I bought dozens of themes. If I put them all on top of each other, it can’t catch the success of this theme.
Works great. Increases our quality without a big upfront investment.
The system runs well. The service is great. We respond quickly to questions and problems. Wishes are taken into account in the further development of the system. We are completely satisfied.
Best tool find errors in pcb production, saving a lot of trouble and very fast. Unbeatable prices. Totally recommended
What are the specs?
Size: 62 x 71 x 54 cm (24.41 x 27.95 x 21.26 in)
Weight: 19 kg ( 41.89 lbs)
Package size: 66 x 73 x 55 cm (25.98 x 28.74 x 21.65 in)
Power consumption: 60W, peak of 110W. 110-200V AC
Optics
- Sensor type: CMOS, rolling shutter
- Sensor model: Sony IMX183
- Pixel size: 2.4 μm × 2.4 μm
- Sensor size: 1″
- Resolution: 5472 × 364
- Lens: 35mm
Inspections
- Max inspection area: 50 x 40 cm (19.69 x 15.75 in)
- Max components per inspection: unlimited
- Inspection time: from 7 to up to 18 seconds, depending on the PCBA size and internet speed.
- Fast internet connection (10-100 Mbps recommended)
- Monthly subscription
What does the AOI Online system include?
- 20 Megapix camera with autofocus (Sony IMX183 sensor)
- 35mm fixed lens optics.
- ESD MAT : designed to drain static charge from items placed on its surface + ground lead + ESD Wrist Strap.
- 360 LED 30W pure Light system
- Black anodized aluminum structure
- USB C and 2.0 micro-USB cable.
- Pre-programmed Ryzen processor Micro-computer (with Keyboard and mouse) + EASY BUTTON (with LED indicator).
- OPTIONAL: 23″ IPS FULL-HD Light-weight HP MONITOR.
- 200 free inspection credits. With no expiry date.
How are updates managed?
What information is processed in the AgnosPCB´s cloud server?
We obtain inspection data in three ways.
- Inspection tool software (ONLY with the ONLINE AgnosPCB AOI systems)
- API service (cloud based service)
- Purchasing any AgnosPCB AOI or creating a service subscription.
Additional information you provide us:
We collect information directly from you, such as when you sign up for an account, register a product or service or otherwise contact us. The types of information we may collect from you include:
Identifiers, such as your name, telephone number, physical and/or email addresses, account username, and account password.
Professional information, such as your occupation, industry, professional licenses, work experience and employment history, and other qualifications.
Commercial information, such as details about your subscription plans, the offerings that you have purchased, used and/or expressed interest in, and events you have attended.
When you make purchases through our websites, we use payment processors (Stripe, Worldpay) and do not store credit card or other financial information (other than confirmation that payment in a certain amount has been made). We or our payment processors collect contact and account information from you to facilitate the transaction. For more information, you can contact our providers as set forth in their privacy notices.
Information we obtain or generate:
We automatically collect or generate certain personal information about you based on your interactions with us, and we may associate that information with your account. The information we automatically collect or generate includes:
Identifiers, such as unique user identifiers, unique device identifiers, IP addresses, cookie identifiers, information about product licenses, and usernames.
Geolocation information, such as region, country, state, Zip or postal code.
Information that may be deemed sensitive under applicable laws, such as usernames and passwords used to access your account, and precise geolocation information.
Is it complicated to set it up for the first time?
The unit has been pre-assembled to make the installation process much simpler. It is just plug&play.
