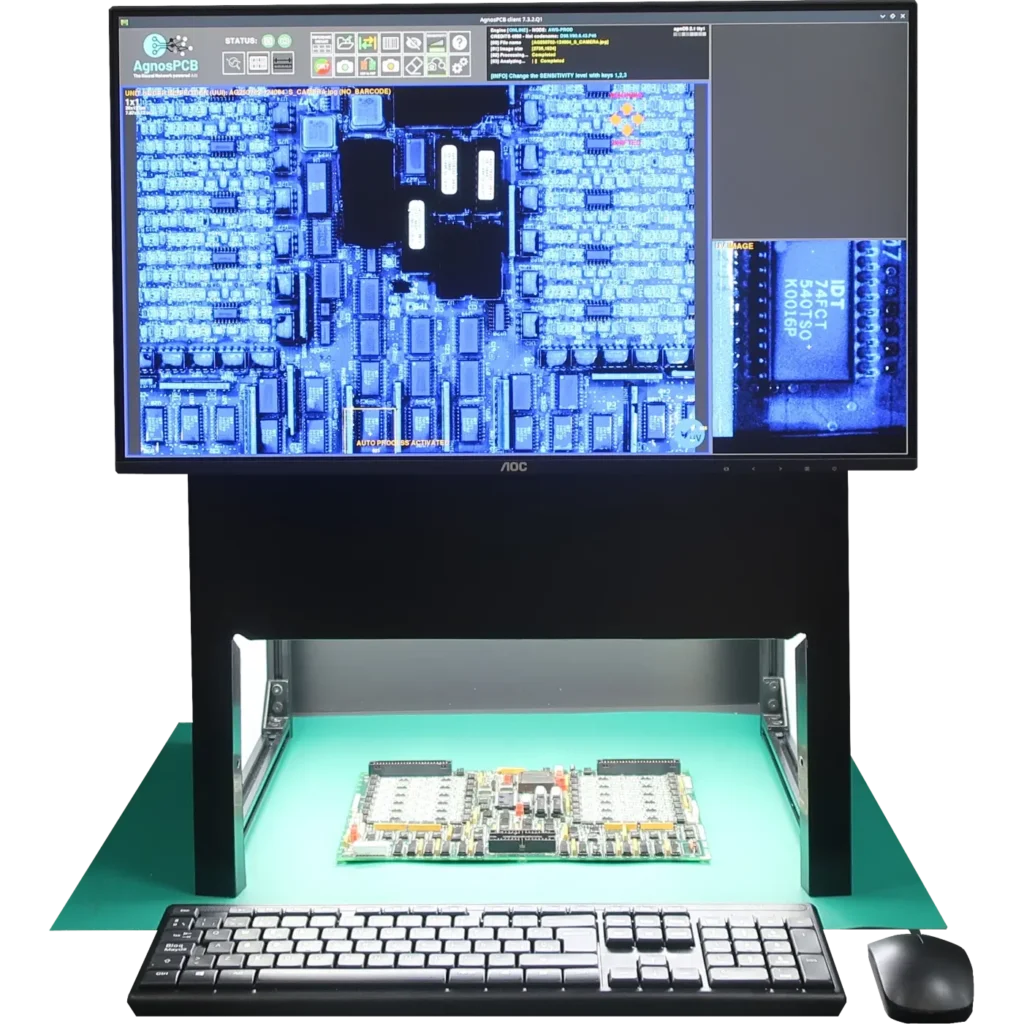

Compact, fast and designed for high-mix PCB inspection.
Q1 AOI System Online, powered by our cloud-based neural network.
This AOI Online system requires an internet connection and a monthly subscription to AgnosPCB services. The system is continuously updated as long as you are subscribed. No long-term contract needed. Cancel or resume anytime.
What our AOI can detect:
- Displacements
- Non-presence
- Excessive rotation
- Short circuits
- Collisions between components
- Polarity errors in components
- Contamination
- Deformations in geometry
- Bent pins
- Damaged components

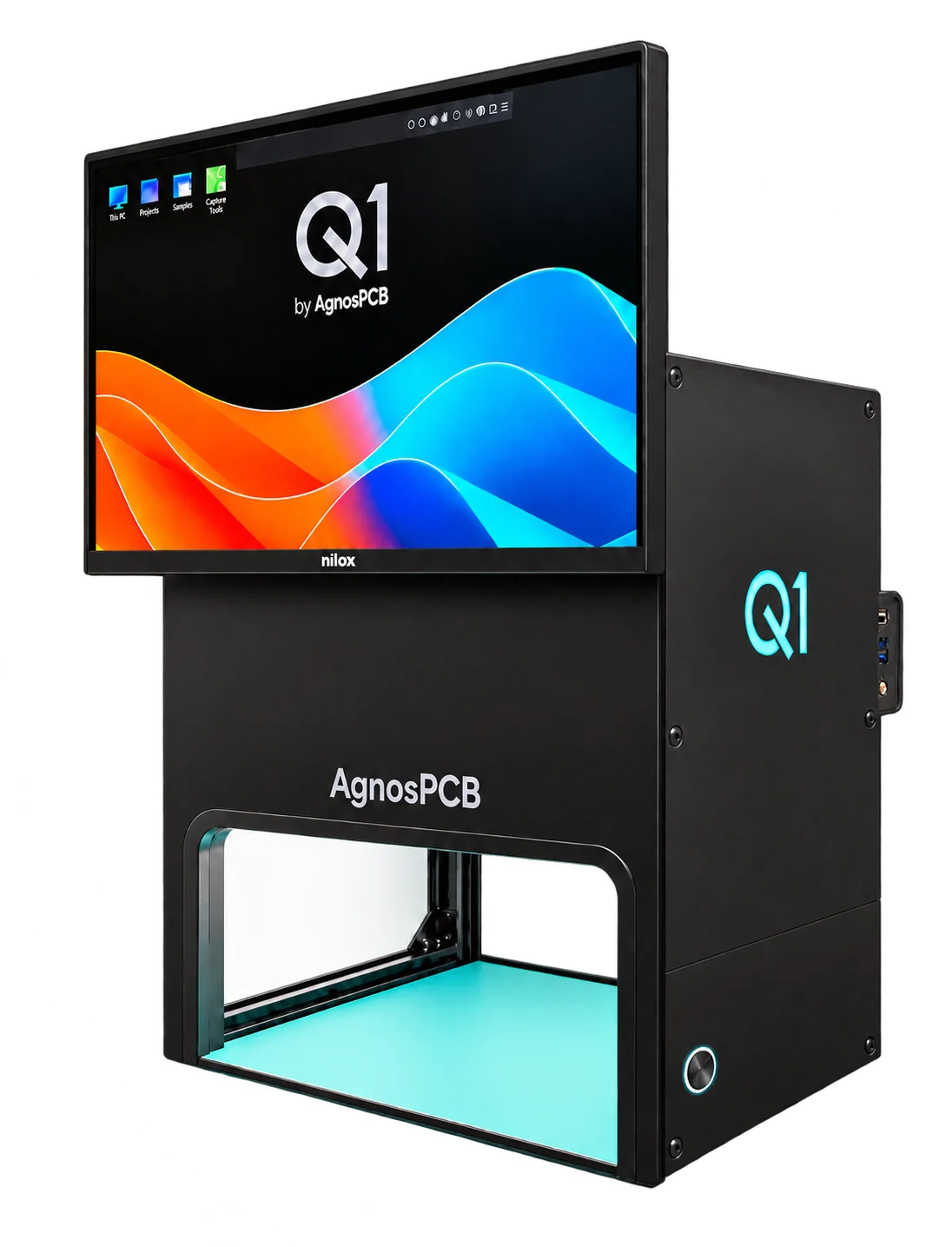

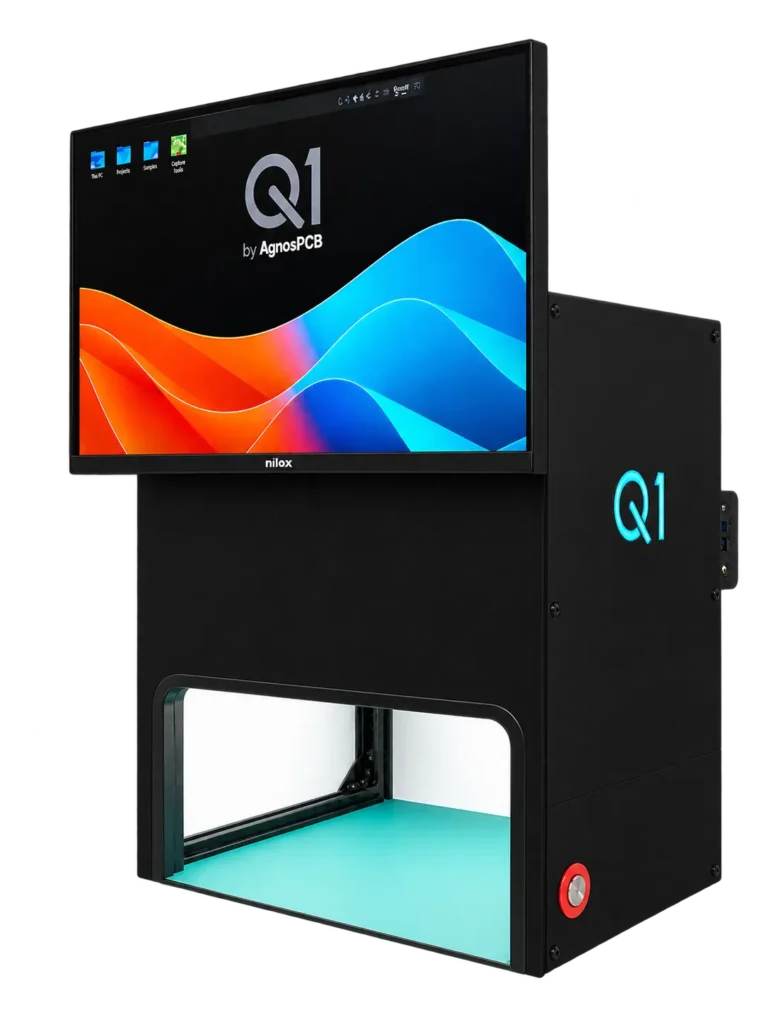

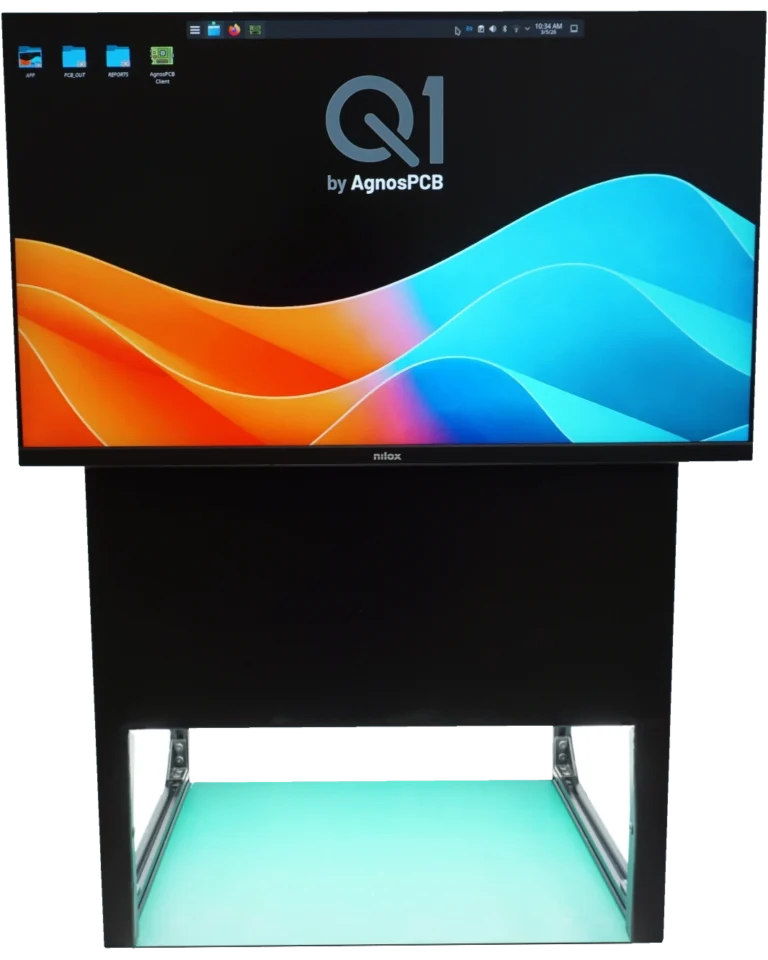

Q1 AOI SYSTEM
- Requires an internet connection to work + subscription
- The subscription can be frozen / cancelled / resumed any time
- Inspection time: from 6 to 18 seconds depending on internet speed.
- Gets the neural network architecture upgrades continuously.
- Get one free month of GOLD subscription with the unit.
Online
What are the specs?
Size: 47 x 56 x 37 cm (18.50 x 22.05 x 14.56 in)
Weight: 10 kg ( 22.04 lbs)
Package size: 66 x 73 x 55 cm (25.98 x 28.74 x 21.65 in)
Power consumption: 60W, peak of 110W. 110-200V AC
Optics
- Sensor type: CMOS, rolling shutter
- Sensor model: Sony IMX183
- Pixel size: 2.4 μm × 2.4 μm
- Sensor size: 1″
- Resolution: 5472 × 3648
- Lens: 25mm
Inspections
- Max inspection area: 20 x 13 cm (7.87 x 5.12 in)
- Max components per inspection: unlimited
- Inspection time: from 6 to up to 18 seconds, depending on internet speed.
Requires
- Fast internet connection (10-100 Mbps recommended)
- Monthly subscription
What does the Q1 AOI system include?
- 20 Megapix camera with autofocus (Sony IMX183 sensor)
- 25mm fixed lens optics.
- ESD MAT : designed to drain static charge from items placed on its surface + ground lead + ESD Wrist Strap.
- 360 LED 30W pure Light system
- Black anodized aluminum structure
- USB C and 2.0 micro-USB cable.
- Pre-programmed Ryzen processor Micro-computer (with Keyboard and mouse) + EASY BUTTON (with LED indicator).
- OPTIONAL: 23″ IPS FULL-HD Light-weight HP MONITOR.
- 200 free inspection credits. With no expiry date.
The system will be sent completely assembled and ready to work. You just need to set the local time.
How are updates managed?
The system is continuosly updated with the lastest neural network architecture as long as you are subscribed to the AgnosPCB service.
This platform allows remote access to the inspections conducted by the AOI operator from any internet-connected device through the REMOTE MONITOR tool.
What information is processed in the AgnosPCB´s cloud server?
We obtain inspection data in three ways.
- Inspection tool software (ONLY with the ONLINE AgnosPCB AOI systems)
- API service (cloud based service)
- Purchasing any AgnosPCB AOI or creating a service subscription.
Additional information you provide us:
We collect information directly from you, such as when you sign up for an account, register a product or service or otherwise contact us. The types of information we may collect from you include:
Identifiers, such as your name, telephone number, physical and/or email addresses, account username, and account password.
Professional information, such as your occupation, industry, professional licenses, work experience and employment history, and other qualifications.
Commercial information, such as details about your subscription plans, the offerings that you have purchased, used and/or expressed interest in, and events you have attended.
When you make purchases through our websites, we use payment processors (Stripe, Worldpay) and do not store credit card or other financial information (other than confirmation that payment in a certain amount has been made). We or our payment processors collect contact and account information from you to facilitate the transaction. For more information, you can contact our providers as set forth in their privacy notices.
Information we obtain or generate:
We automatically collect or generate certain personal information about you based on your interactions with us, and we may associate that information with your account. The information we automatically collect or generate includes:
Identifiers, such as unique user identifiers, unique device identifiers, IP addresses, cookie identifiers, information about product licenses, and usernames.
Geolocation information, such as region, country, state, Zip or postal code.
Information that may be deemed sensitive under applicable laws, such as usernames and passwords used to access your account, and precise geolocation information.
Is it complicated to set it up for the first time?
The unit has been pre-assembled to make the installation process much simpler. It is just plug&play.
If you need extra information about our products and services, get a trial account or want to rent an AgnosPCB AOI unit, please fill the following form.
Our support team will contact you as soon as possible.
