NEW AI 4050 AOI vs OLD SYSTEM COMPARISON
2030 AOI SYSTEM
Very popular but now deprecated AgnosPCB system. Bought by companies such as Apple, Intel or Boston Dynamics. Supports up to version 5.X of the AgnosPCB inspection software. With a useful inspection area of 20×30 cms.
NEW 4050 AOI SYSTEM
Award-winning, neural-network-powered AOI unit with a compact footprint, an expanded inspection area, and improved, uniform illumination. It can learn and adapt to meet custom inspection requirements.
- Regular inspection area of 23x30 cm
- Manual control of the camera
- 18 W manual ON/OFF lighting system
- Inspection tool software v5
- Not capable of working with barcodes
- External monitor required
- Very large inspection area of 40x50 cm (15.7x 19.7 inches)
- Camera focus and parameters are set automatically
- Lighting system with auto on-off and adjustment. 45W 360 LED Lights
- New v7 inspection tool software
- Barcode reader with external handheld for easy inspection log and tracking
- Full HD IPS monitor integrated
- Local network data sharing
- Operator limited access to system configuration
- Fast project load with barcode reader
- Very small footprint of 60x 70 cm (24 x 27 inches)
- REMOTE MONITOR tool compatible (only ONLINE version)
- Resolution of 35 µm/pixel
- Capable of detecting errors with 01005 components
Image captured with the OLD AOI SYSTEM

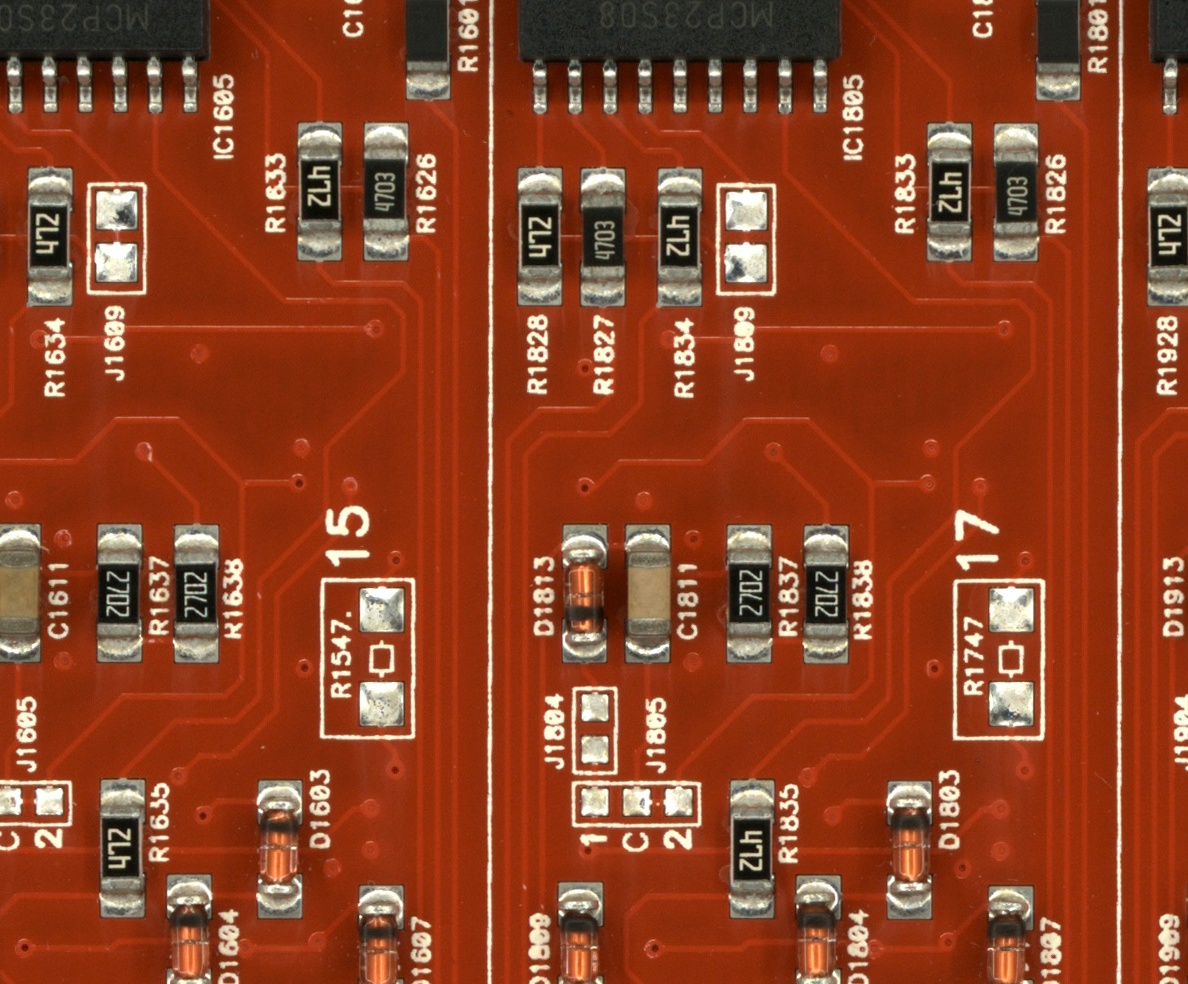

Image captured with the NEW 4050 system
